Loaded Container Handler

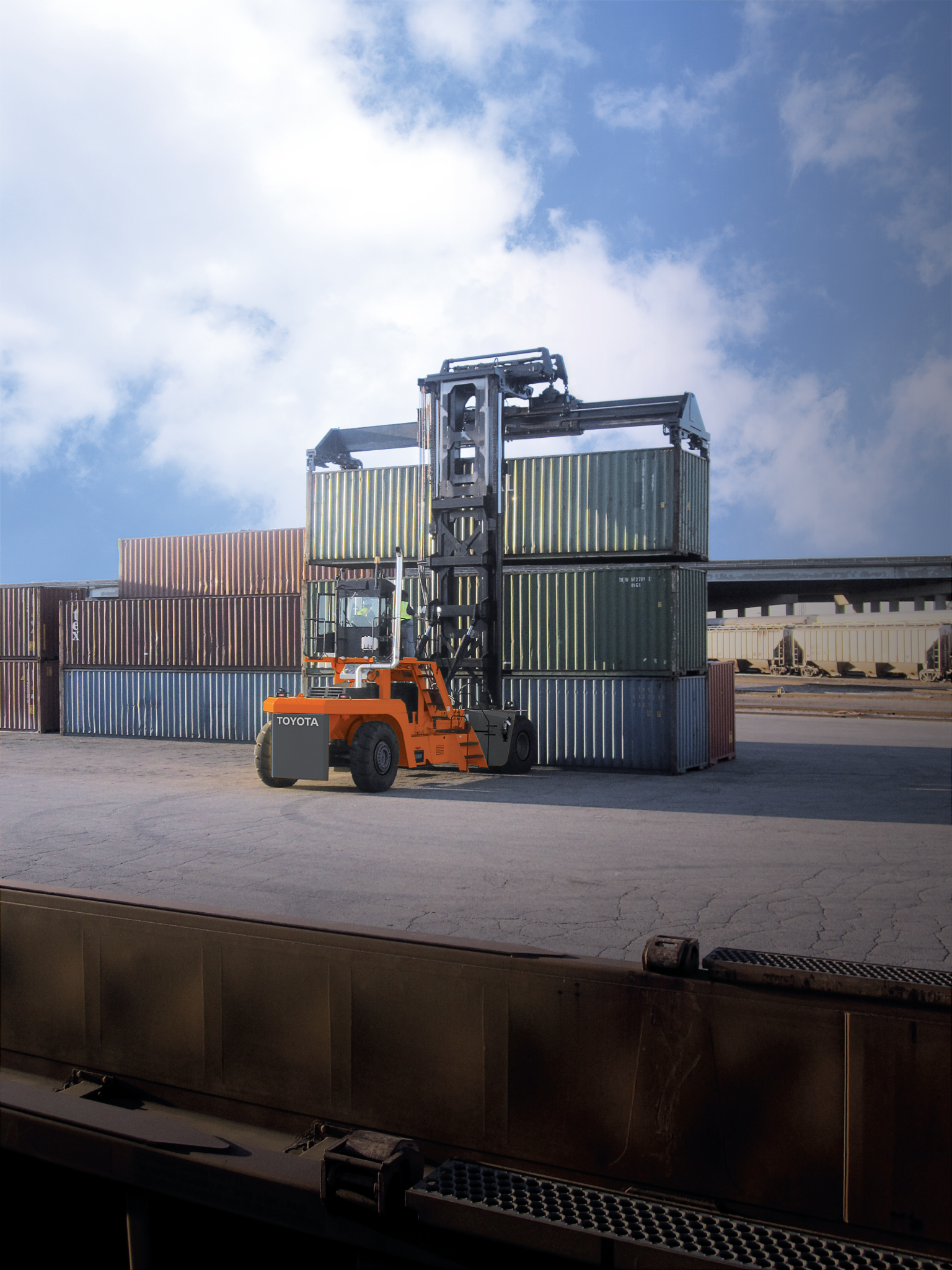

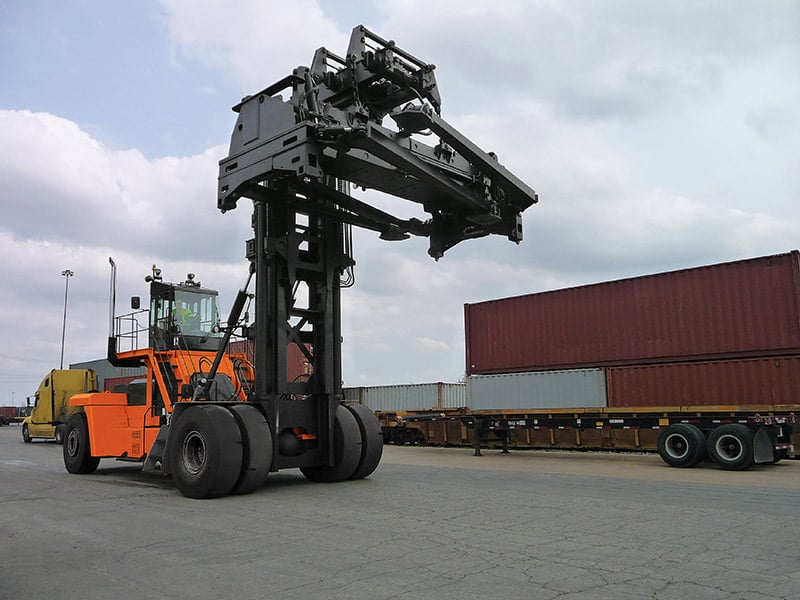

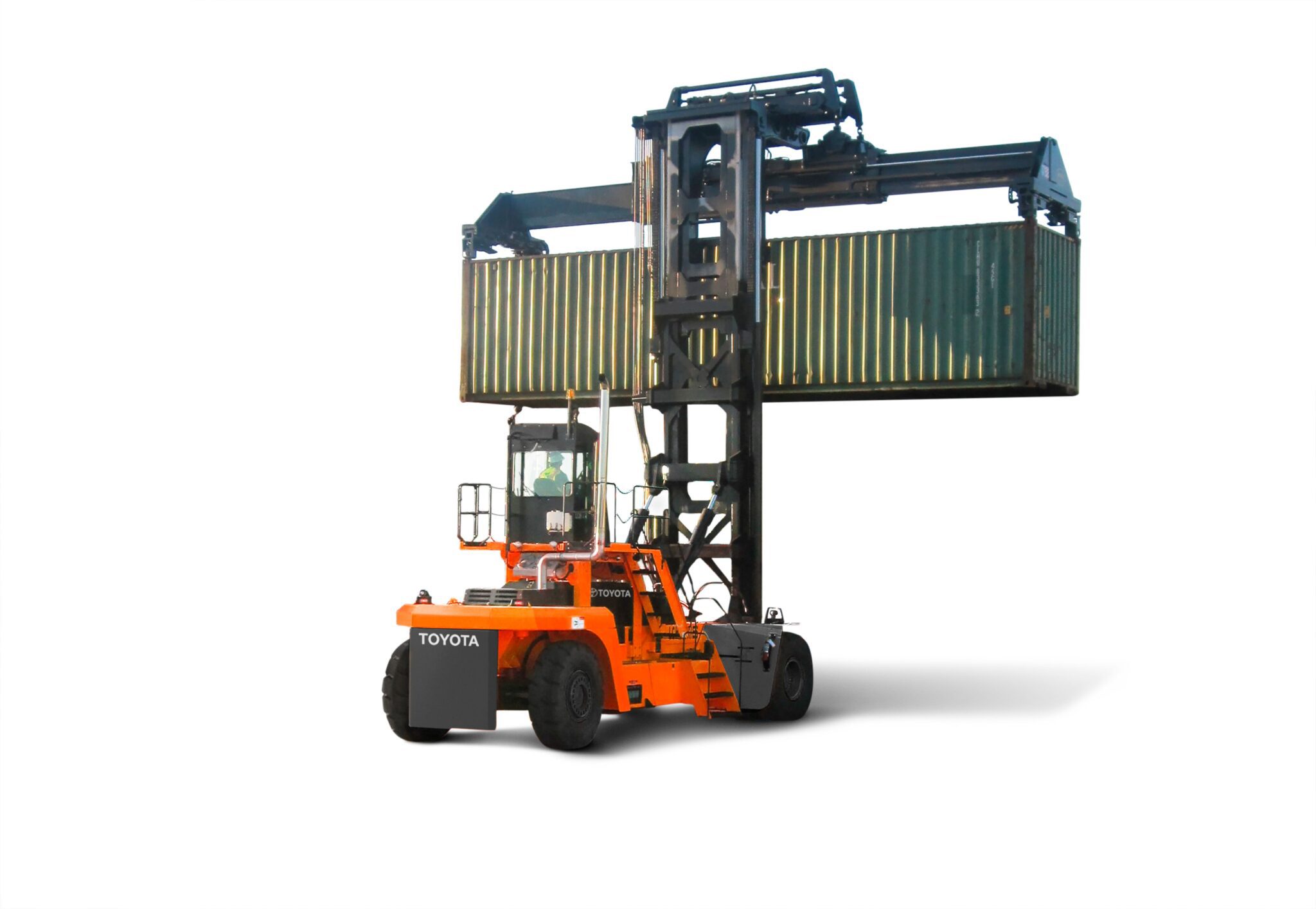

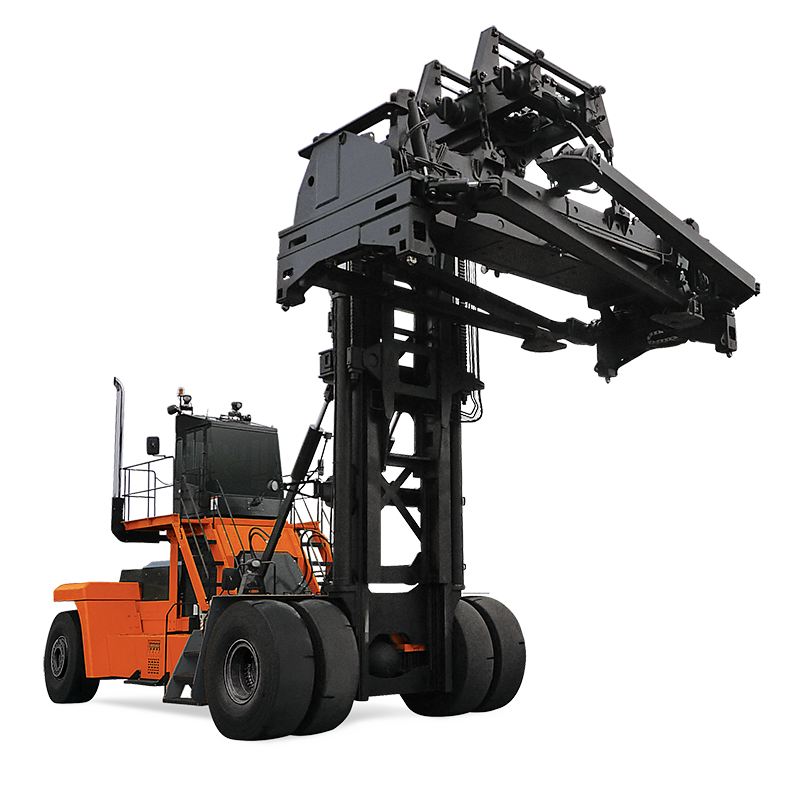

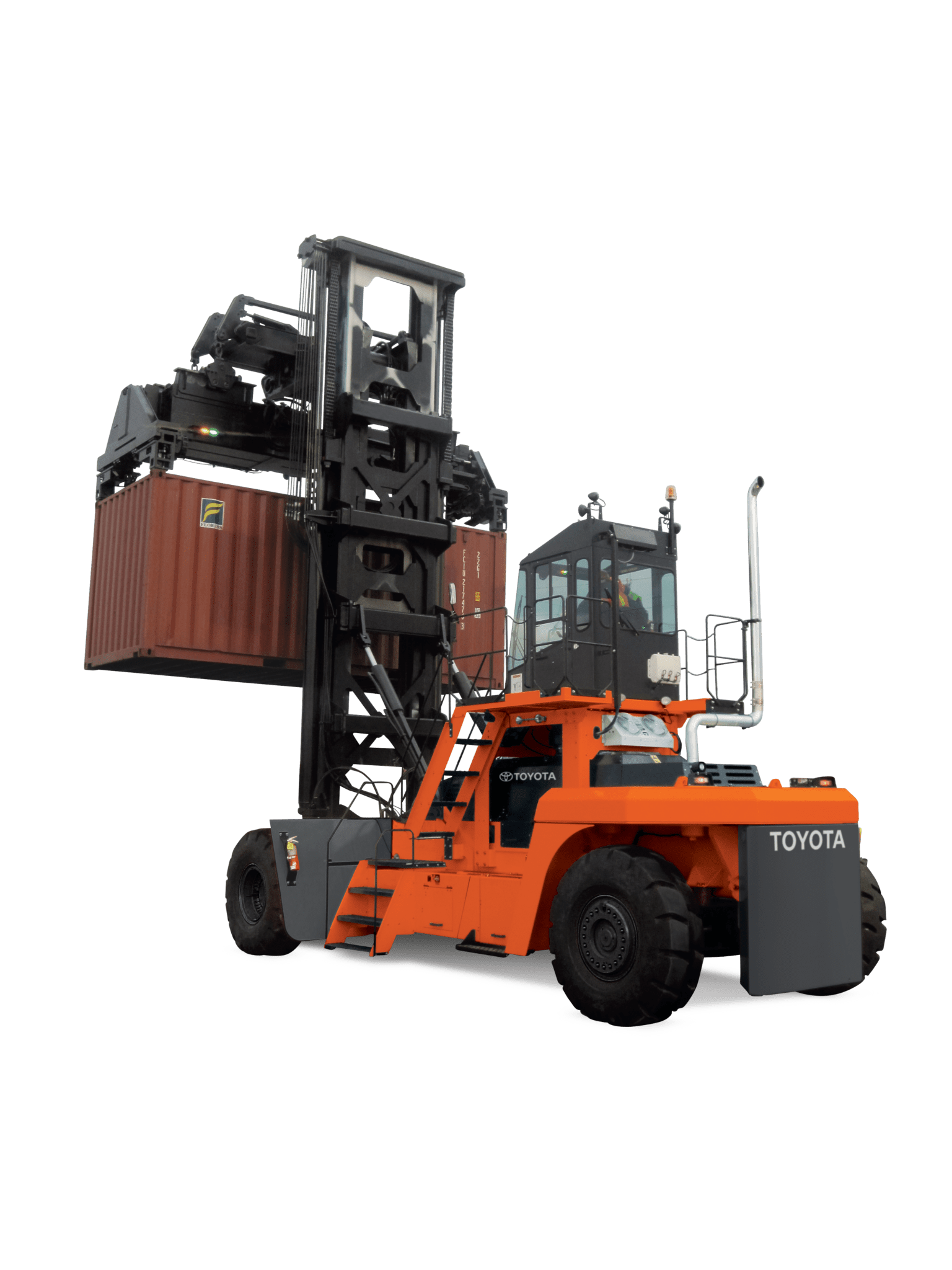

Toyota’s Loaded Container Handler is the king of the port. With a container lifting capacity of up to 90,000 lbs. and the ability to stack up to 6 containers high, this exceptionally stable container handler can be used in the most rugged applications. Popular in ports, terminals and shipping yards, the Toyota Loaded Container Handler will provide fast lifting cycles, high stacking and reduced freight costs.

Download the spec/info sheet

SPECIAL FEATURES

  • Up to 90,000 lb. Lifting Capacity
  • 47 FPM Lifting Speed
  • Diesel Powered

KING OF THE PORT

Toyota’s Loaded Container Handler is engineered to provide fast lifting cycles, high stacking and reduced freight costs. This forklift offers a wide variety of attachments to fit your material handling needs, including 3-spool main control valve (lift, tilt, attachment), and 4-point top pick twistlock attachments as well as a 2-point side post hook attachment for double stacking of empty containers.

LOADED CONTAINER HANDLER FEATURES

Technology on Display

Every forklift in the Toyota THD line comes equipped with an MD4 7” Touchscreen Display. It combines the rugged power of the THD model lineup with the latest advancements in forklift technology to put ultimate customization, advanced diagnostics, and pertinent forklift information right at your fingertips.

Powerful Performance

Toyota’s Container Handler comes with a CUMMINS® QSL9 380 hp turbocharged diesel engine and Dana 36,000 powershift transmission with three forward and three reverse speeds. This forklift provides the power you need to perform your most challenging tasks.

Rugged Machine for Rugged Environments

From Toyota’s heavy-duty tires and drive axles to our rugged masts and lift attachments, every inch of a Toyota Loaded Container Handler is made to withstand the harsh environments they operate in. Even though the loads are heavier, the terrain is more challenging, and the stakes are higher than typical forklift tasks, if it bears the name Toyota, you know you can count on it to get the job done.

Loaded Container Handler

Model Load Capacity (lbs.) Max Travel Speed Full Load (MPH) Max Lift Speed Full Load (FPM) Max Gradeability Full Load (%) Basic Right Angle Stack (in.)
THD8000-L6 80,000 (2-High) / 75,000 (6-High) 20 47 9.8 522 (20′ cont.) / 601 (40′ cont.)
THD8600-L5 86,000 (2-High) / 76,000 (5-High) 19.2 47 10.7 522 (20′ cont.) / 601 (40′ cont.)
THD9000-L3 90,000 (2-High) / 90,000 (3-High) 19.2 47 11.5 522 (20′ cont.) / 601 (40′ cont.)
THD9000-L4 90,000 (2-High) / 85,000 (4-High) 19.2 47 11.1 522 (20′ cont.) / 601 (40′ cont.)

* Based on 24″ Load center ** Add load length and clearance
