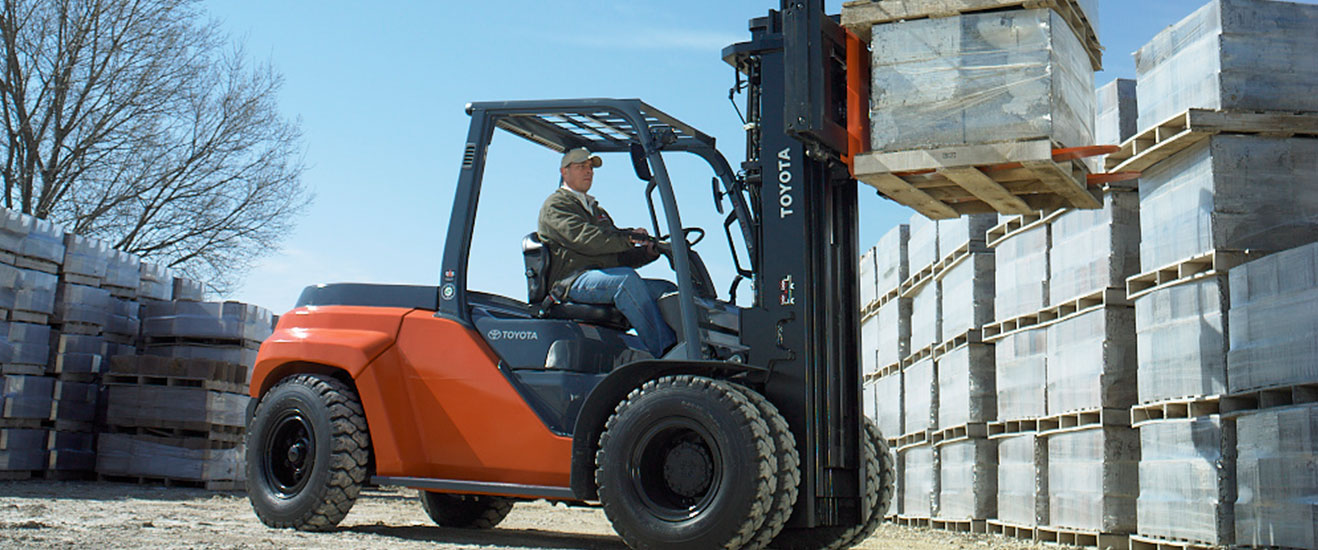

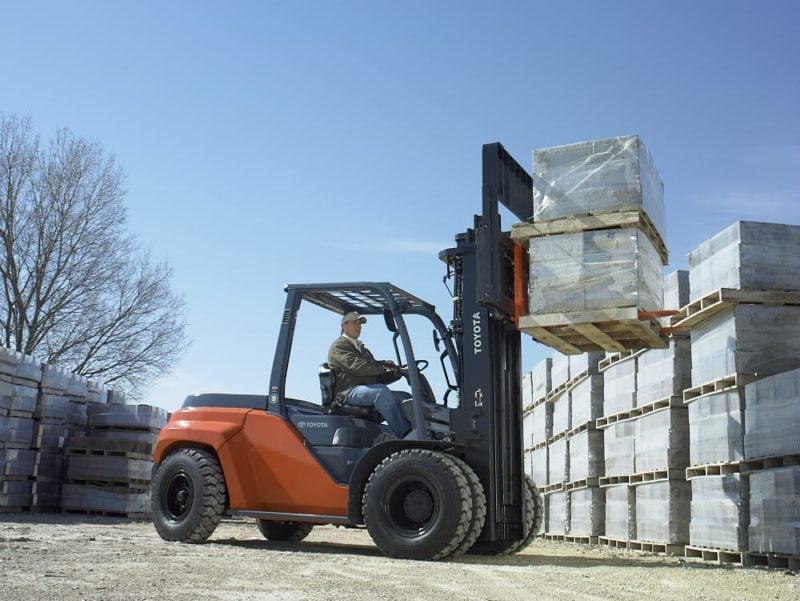

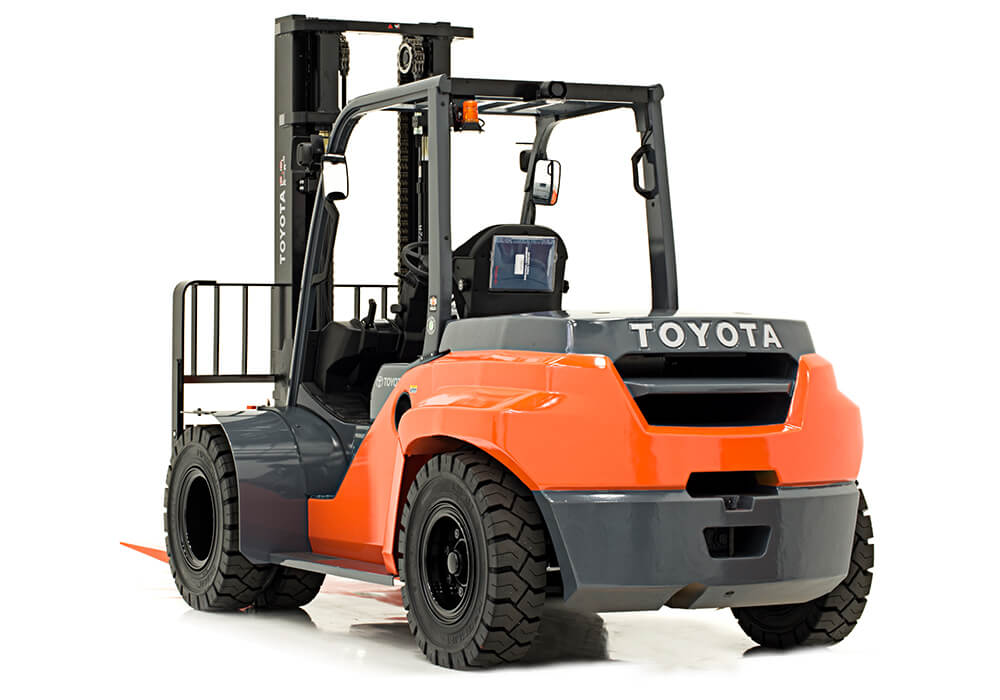

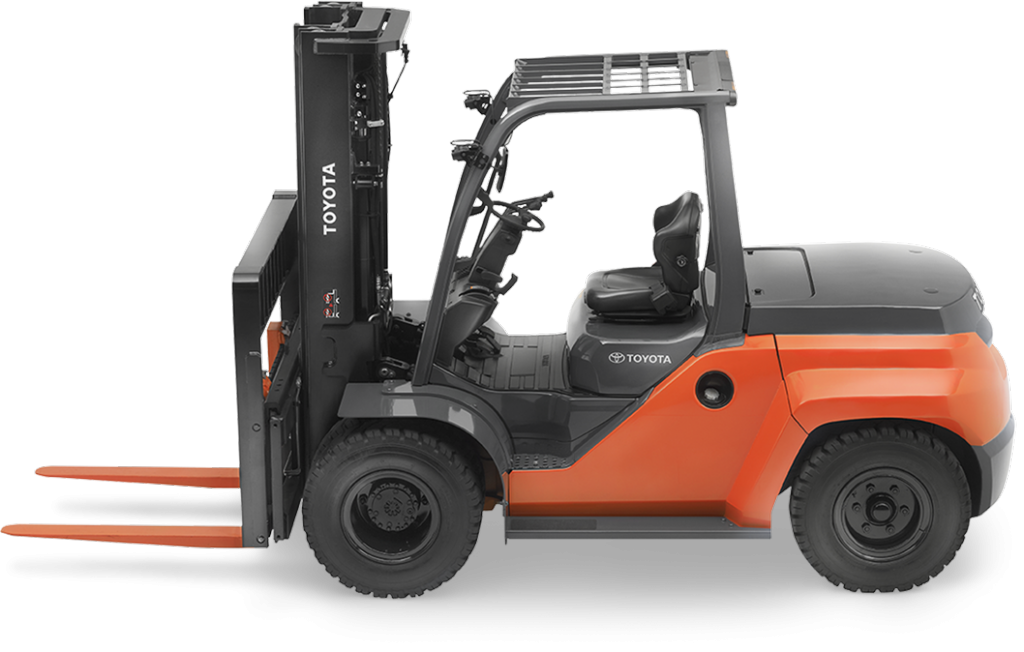

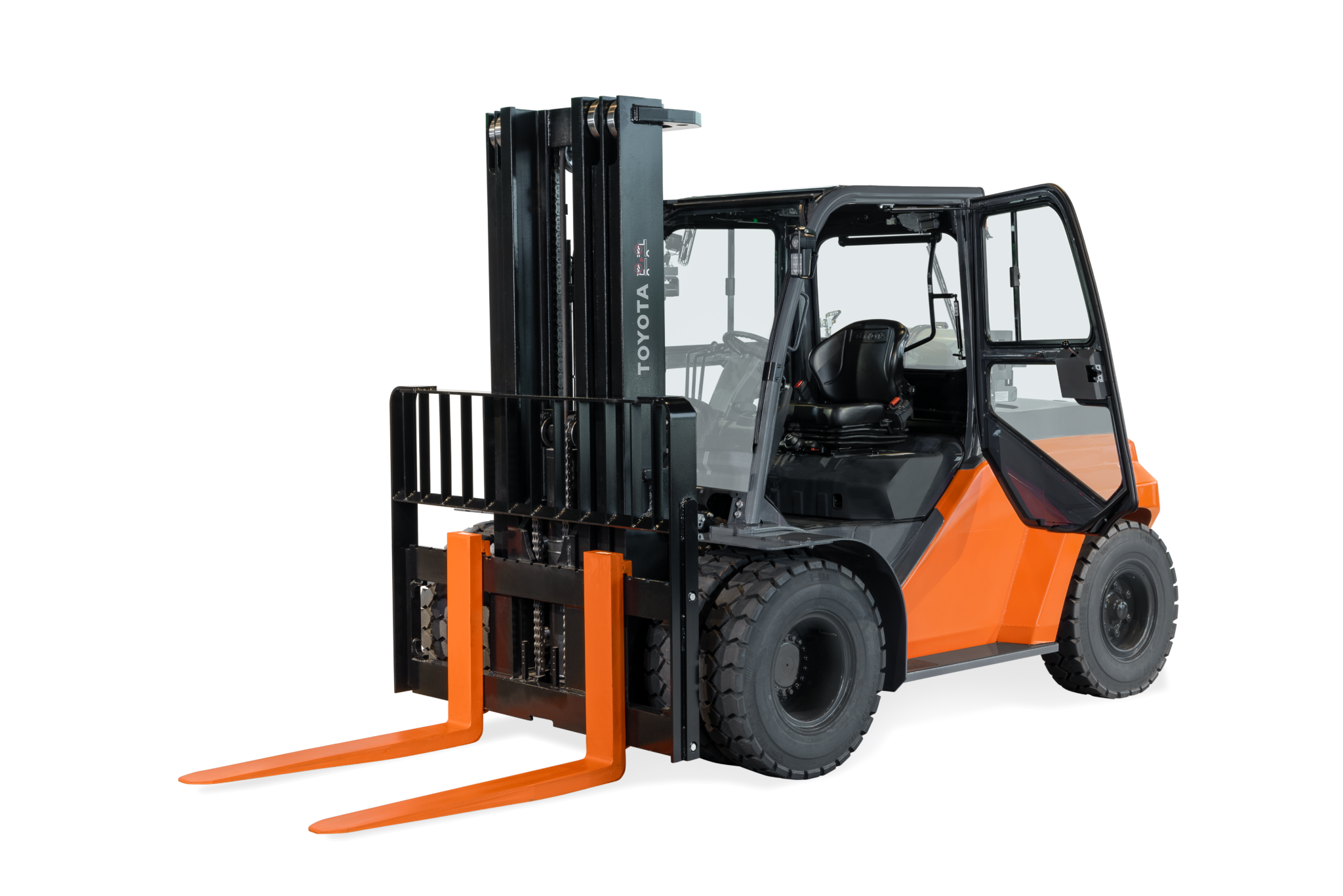

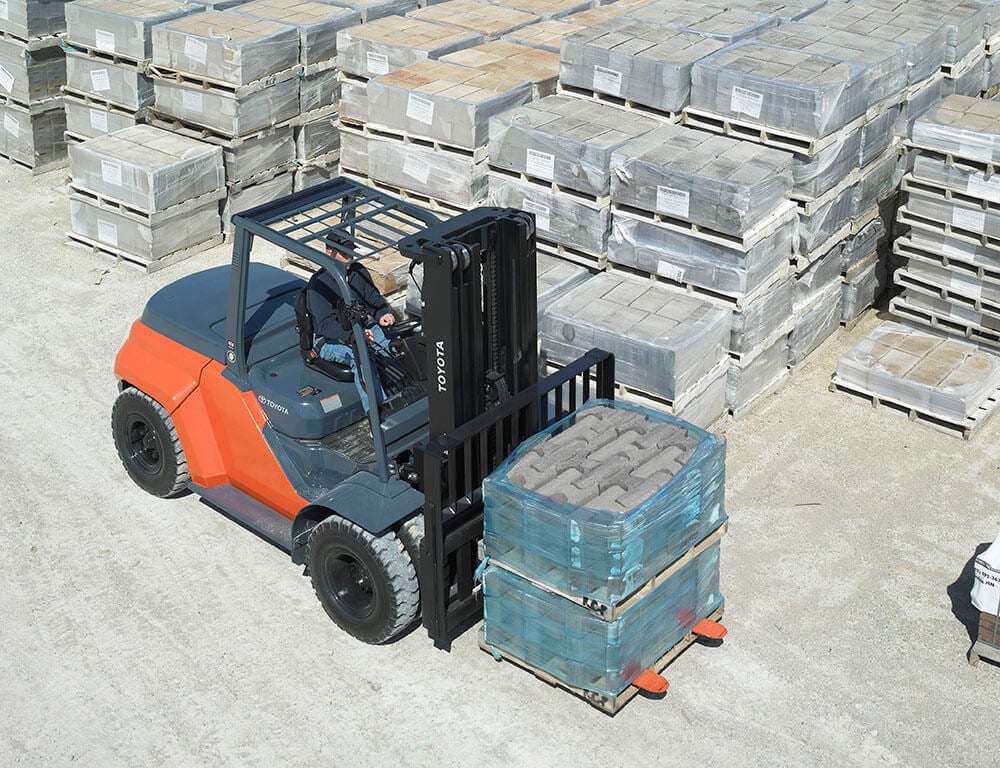

Large IC Pneumatic Forklift

The Toyota Large IC Pneumatic Forklift can lift up to 17,500 lbs. and can easily navigate in gravel, dirt and asphalt. Popular on construction sites as well as in lumber yards, brick and stone distribution centers, specialized warehouses and heavy-duty manufacturing plants, this large heavy-duty forklift is engineered to be extremely durable and efficient in all conditions.

Download the spec/info sheet

Special Features



  • 13,500-17,500 lb. Lifting Capacity
  • System of Active Stability (SAS)™
  • 2-Speed Transmission

Big Jobs for a Big Forklift

Lifting up to 17,500 lbs., the Large IC Pneumatic forklift is a workhorse when lifting lumber, bricks, piping, and other heavy materials. Powered by LPG, this forklift can handle the most difficult conditions. This lift also includes Active Mast Control (AMC), which responds automatically to enhance the stability of loads handled at high lift heights. Extremely durable and suitable for tough conditions, the Large IC Pneumatic delivers the goods.

Large IC Pneumatic Forklift Features

Quality, Durability, & Value

Toyota’s Large IC Pneumatic Forklift comes with a Toyota designed LP engine for a powerful performance as well as force-cooled wet disc brakes to reduce maintenance costs and downtime. This product comes with a standard LCD multifunction display with a built-in analyzer that provides self-diagnostics. The Large IC Pneumatic Forklift has welded, roll-formed overhead guard pillars to provide the operator with maximum protection for improved entry/exit and load visibility.

Comfortable in Control

While Toyota’s Large IC Pneumatic handles the tough jobs, operators will be riding easy. Tackling heavy loads and tricky terrain doesn’t mean comfort can’t come into place. With this forklift, operators will find comfort and operational efficiencies through the following:

  • Premium Comfort Seat
  • Standard LCD Multifunction Display
  • Non-cinching seatbelt
  • Tilt steering column
  • Load-sensing, vibration-isolating power steering
  • Control levers conveniently at hand, but out of the way during entry and exit
  • Low, wide entry steps
  • Optional operator cabin

See More of the Environment

Forward, up, back. Any way you look, operators will appreciate the clear, open sightlines of Toyota’s Large IC Pneumatic. Mast hosing is tucked away, overhead guard bars are oriented for maximum visibility, and the mast crossmember doesn’t block your view of the fork tips. Even the sloped dashboard and slimmer steering wheel and column lend a hand. Visibility plays a leading role in performance and productivity, and the Large IC Pneumatic delivers it like a star.

Large IC Pneumatic Forklift

Model Load Capacity (lbs.) Max Travel Speed Full Load (MPH) Max Lift Speed Full Load (FPM) Max Gradeability Full Load (%) Basic Right Angle Stack (in.)
50-8FG60U 13,500 11.8 83 32 151
50-8FG70U 15,500 11.5 83 28 153
50-8FG80U 17,500 11.5 69 25 155

* Based on 24″ Load center ** Add load length and clearance

Model Number

8FD60U, 8FD70U, 8FD80U, 8FG60U, 8FG70U, 8FG80U

Load Capacity

17,500

Max Travel Speed Full Load

11.8

Max Lift Speed Full Load

81

Max Gradeability Full Load

34

Basic Right Angle Stack

154
