The Toyota High-Capacity IC Pneumatic Forklift is your best weapon for the most demanding jobs. Think ports and shipping containers. Construction sites. Lumber, brick, block, and pipe. Forging and manufacturing. Then think bigger. Think Toyota.

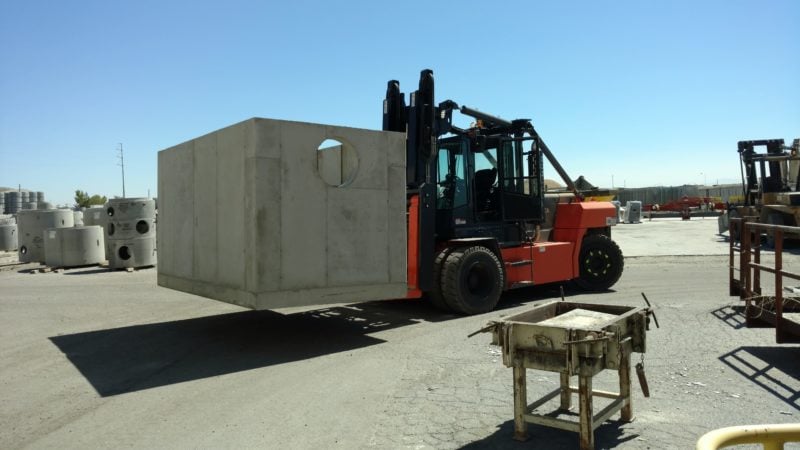

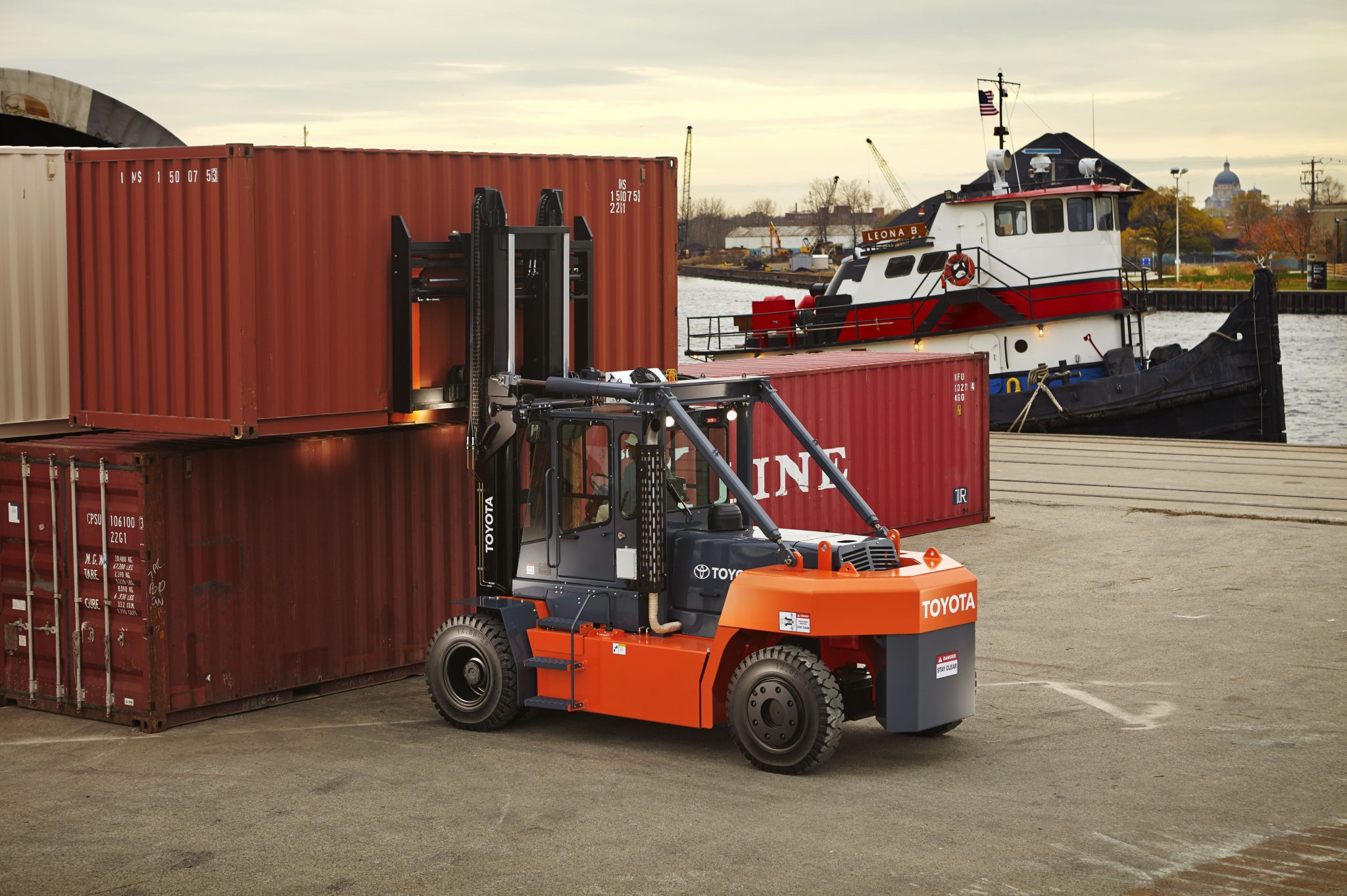

Toyota’s High-Capacity IC Pneumatic Forklift is the largest forklift in Toyota’s product line. With a lifting capacity to handle heavy loads up to 125,000 lbs., this large, rugged diesel forklift can handle almost any heavy load. Commonly found loading and unloading large shipping containers or on the construction site, the High-Capacity IC Pneumatic Forklift provides lifting solutions for extremely heavy industrial applications.
The Toyota High-Capacity IC Pneumatic Forklift is your best weapon for the most demanding jobs. Think ports and shipping containers. Construction sites. Lumber, brick, block, and pipe. Forging and manufacturing. Then think bigger. Think Toyota.

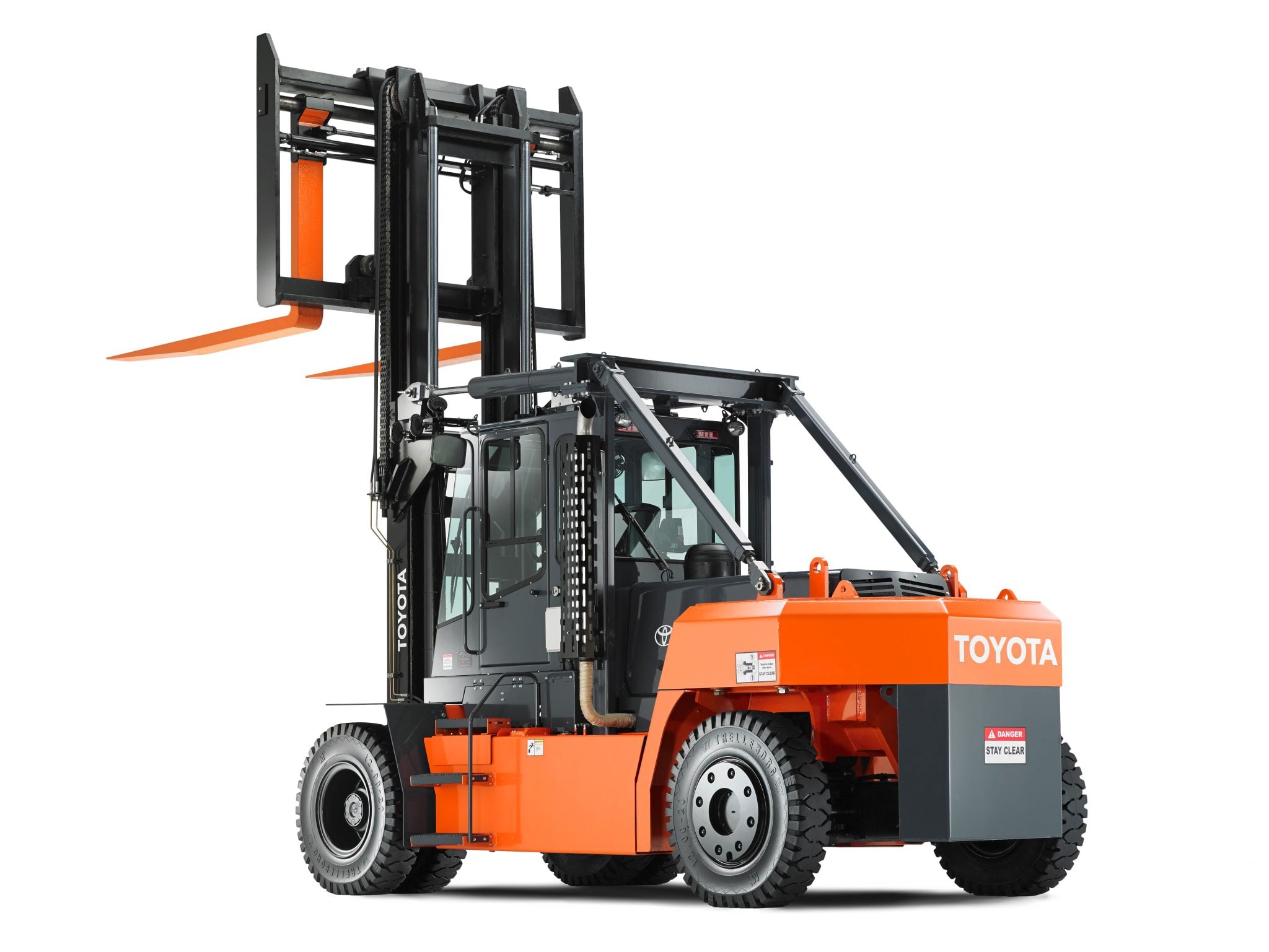

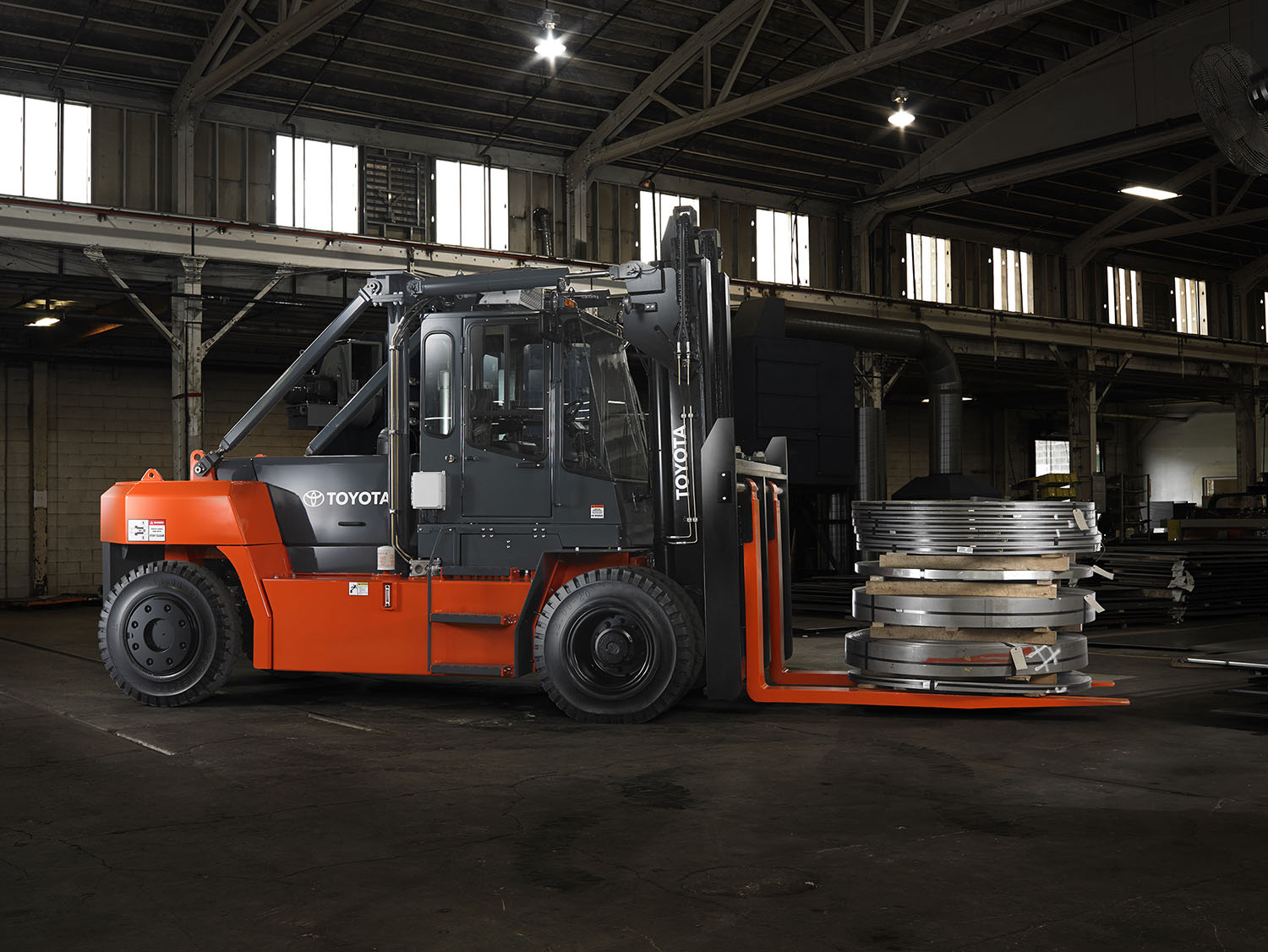

The High-Capacity IC Pneumatic Forklift is Toyota’s heavy load solution. It is capable of lifting over 62 Tons (125,000 lbs.), the High-Capacity IC Pneumatic Forklift is often moving material on construction sites and loading full trailers onto large ships. Additionally, this lift includes a vehicle management system with onboard diagnostics that shares useful information and timely alerts on a 7-inch color touch screen multifunction display. Moreover, standard fingertip controls provide smooth material handling and variable speed control of all functions. Lastly, a low-profile counterweight makes the THD easy to maneuver and confidently puts you in control.
Safety features on the High-Capacity IC Pneumatic include an operator presence sensing system (OPSS), which is built under the seat of the forklift and detects the operator’s presence while in operation. Additionally, this forklift also includes a neutral safety switch, integrated overhead guard, and electrical horn. Wet disc brakes also come standard on this forklift which seals out debris, keeps breaks running cool, and reduces wear for increased uptime and a longer lifespan.

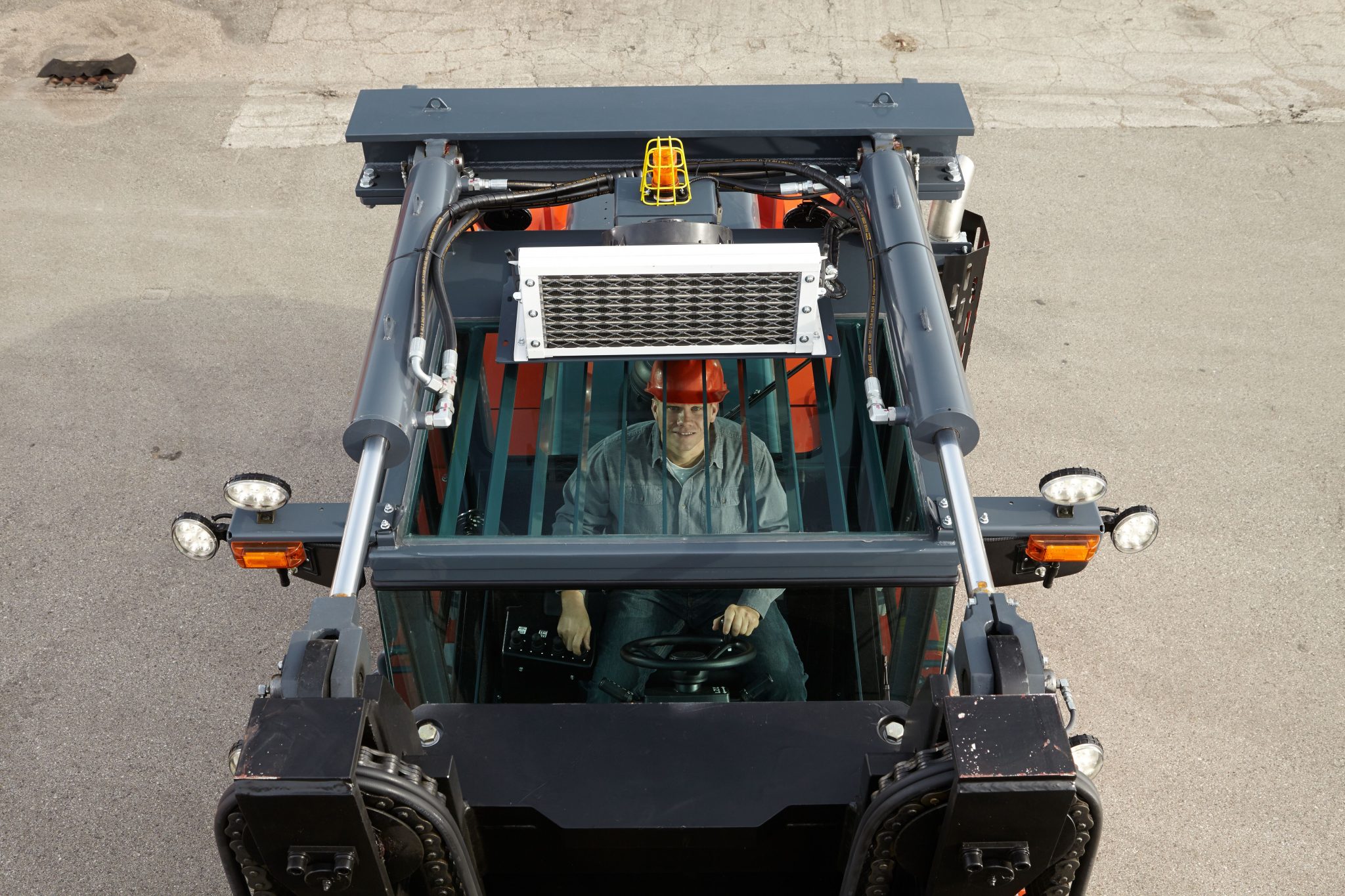

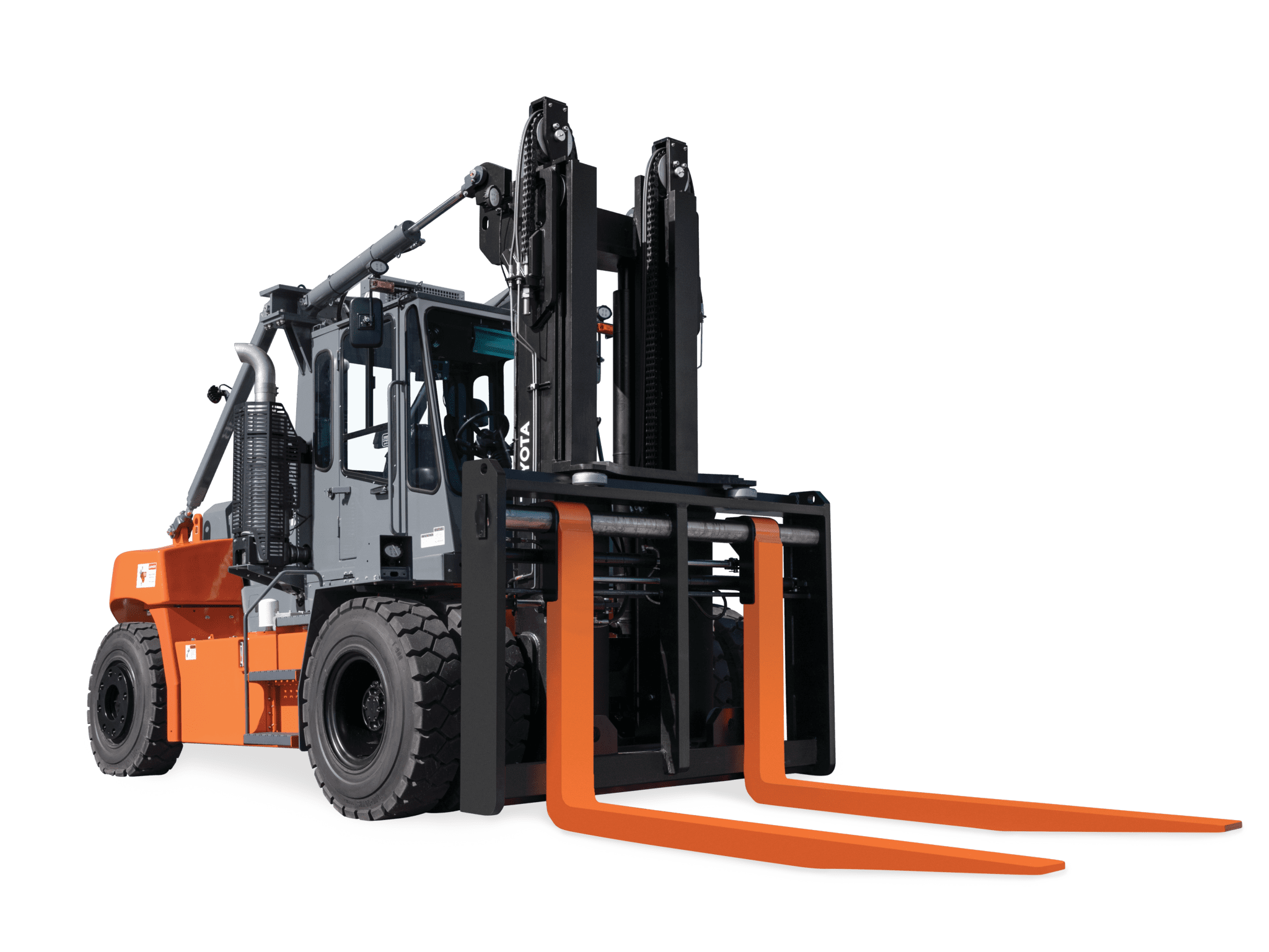

An enclosed operator compartment with clear sight lines reduces exposure to the elements while providing superior visibility. A premium air rid seat, heater, and operator fan comes standard, keeping operators comfortably productive over the course of a shift. Add a two-stage, wide-view mast – with lift cylinders mounted directly behind the mast rails – and you have an even wider field of vision. Additionally, tilt steering columns, operator assist grips, and left-hand shift levers are included.
Model | Load Capacity (lbs.) | Max Travel Speed Full Load (MPH) | Max Lift Speed Full Load (FPM) | Max Gradeability Full Load (%) | Basic Right Angle Stack (in.) |
THD10000-48 | 100,000 | 20.0 (no load) | 34.7 | 11.7 | 364 |
THD11000-48 | 110,000 | 20.0 (no load) | 34.7 | 10.9 | 364 |
THD12000-48 | 120,000 | 20.0 (no load) | 34.7 | 10.1 | 441 |
THD12500-48 | 125,000 | 20.0 (no load) | 34.7 | 9.9 | 441.13 |
THD3000-24 | 30,000 | 23 (no load) | 64.1 (standard) 128.2 (high-speed option) | 24 | 203.2 |
THD3300-24 | 33,000 | 23 (no load) | 64.1 (standard) 128.2 (high-speed option) | 24 | 227 |
THD3300S-24 | 33,000 | 23 (no load) | 64.1 (standard) 128.2 (high-speed option) | 23 | 203.2 |
THD3600-24 | 36,000 | 23 (no load) | 64.1 (standard) 128.2 (high-speed option) | 22 | 237 |
THD3600-36 | 36,000 | 23 (no load) | 53.2 (standard) 106.4 (high-speed option) | 20 | 242 |
THD3600-48 | 36,000 | 23 (no load) | 53.2 (standard) 106.4 (high-speed option) | 19 | 242 |
THD3600S-24 | 36,000 | 23 (no load) | 64.1 (standard) 128.2 (high-speed option) | 21 | 206 |
THD3600S-36 | 36,000 | 23 (no load) | 53.2 (standard) 106.4 (high-speed option) | 19 | 206.5 |
THD4000-48 | 40,000 | 23 (no load) | 53.2 (standard) 106.4 (high-speed option) | 18 | 252 |
THD4500-48 | 45,000 | 24.9 (no load) | 53.2 (standard) 106.4 (high-speed option) | 19 | 305 |
THD4500S-48 | 45,000 | 24.9 (no load) | 53.2 (standard) 106.4 (high-speed option) | 18 | 276.3 |
THD5000-48 | 50,000 | 24.9 (no load) | 32.7 (standard) 65.4 (high-speed option) | 17 | 305 |
THD5200-48 | 52,000 | 24.9 (no load) | 32.7 (standard) 65.4 (high-speed option) | 17 | 305 |
THD5500-48 | 55,000 | 24.9 (no load) | 32.7 (standard) 65.4 (high-speed option) | 16 | 305 |
THD6000-48 | 60,000 | 21.1 (no load) | 32.7 (standard) 65.4 (high-speed option) | 18 | 315 |
THD6500-48 | 65,000 | 21.1 (no load) | 32.7 (standard) 65.4 (high-speed option) | 17 | 315 |
THD7000-48 | 70,000 | 21.1 (no load) | 25 (standard) 50 (high-speed option) | 14 | 315 |
THD7200-48 | 72,000 | 21.1 (no load) | 25 (standard) 50 (high-speed option) | 14 | 315 |
THD8000-48 | 80,000 | 19.2 (no load) | 43.9 | 17 | 355.5 |
THD8000S-48 | 80,000 | 19.2 | 43.9 | 16.2 | 319.3 |
THD9250-48 | 92,500 | 20.0 (no load) | 43.9 | 12.7 | 355.5 |
THD9250S-48 | 92,500 | 20.0 (no load) | 43.9 | 12.1 | 327.8 |
* Based on 24″ Load center ** Add load length and clearance
Model Number | 5FD100, 5FD115, 5FD120, 5FD135, 5FDK150, 5FDK160, THD10000-48, THD11000-48, THD12000-48, THD12500-48, THD2200-24, THD2400-24, THD2600-24, THD2800-24, THD3000-24, THD3300-24, THD3300S-24, THD3600-24, THD3600-36, THD3600-48, THD3600S-24, THD3600S-36, THD4000-48, THD4500-48, THD4500S-48, THD5000-48, THD5200-48, THD5500-48, THD6000-48, THD6500-48, THD7000-48, THD7200-48, THD8000-48, THD8000S-48, THD9250-48, THD9250S-48 |
---|---|
Load Capacity | 125,000 |
Max Travel Speed Full Load | 19.2 |
Max Lift Speed Full Load | 128 |
Max Gradeability Full Load | 54 |
Basic Right Angle Stack | 441 |
